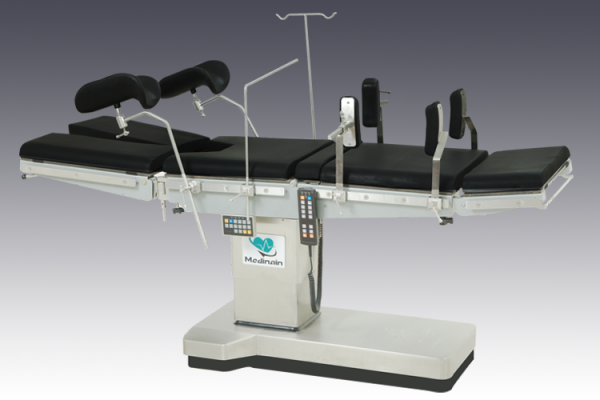

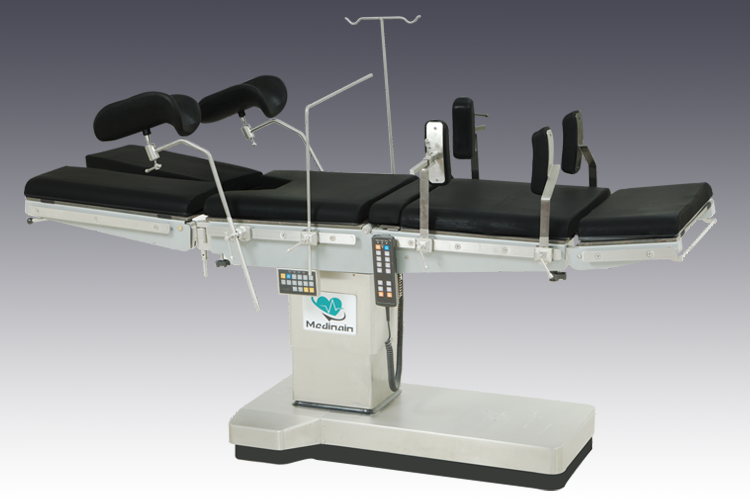

Medinain Electro – Hydraulic OT Table (ME-2100HE)
Features:-
- Five section table top with divided foot section.
- Table top is constructed from a high-pressure laminate to
- permit x-ray penetration and fluoroscopy.
- All table positioning i.e. height, back section, lateral tilt, trendelenburg
- and anti-trendelenburg, operated by remote.
- The casings on the frame and centre supporting column should be made of hygienic
- stainless steel and should have built in elevator for kidney and chest bridge.
- Table Top is made from radiolucent material.
TECHNICAL DATA
Top Dimension | L 1900mm x W 522mm |
Height Adjustment | 750mm – 1000 mm |
Trendelenbrug / Reverse | 300° / 250 |
Lateral Tilt | 200° / 200 |
Kidney Elevator | 130 mm |
Back Rest ( up / down ) | 600° / 250 |
Leg Rest ( up / down | 150° / 900 |
Head Rest ( up / down ) | 200° / 600 |
Power Supply | 24V DC |
Battery Backup | 2-3 Hours (optional) |
Mains Voltage | AC 220V+10% 50Hz |
Patient Weight Capacity | 200 Kgs |
