Smith and Nephew Dyonics vision 325z digital 3CCD Camera and Dyonics ED3 camera
Pre-owned, working and in good condition.
All products come with power cable or unless stated.

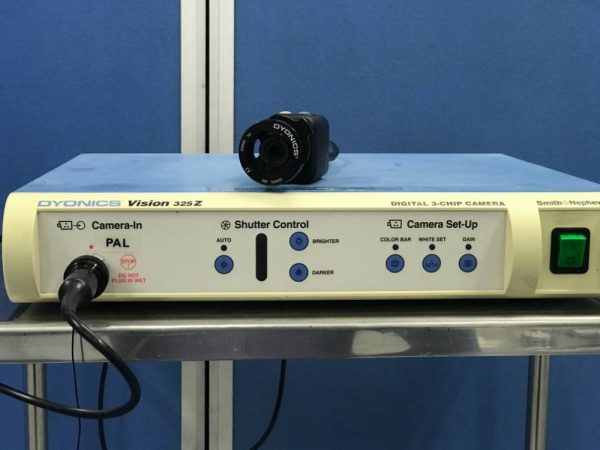

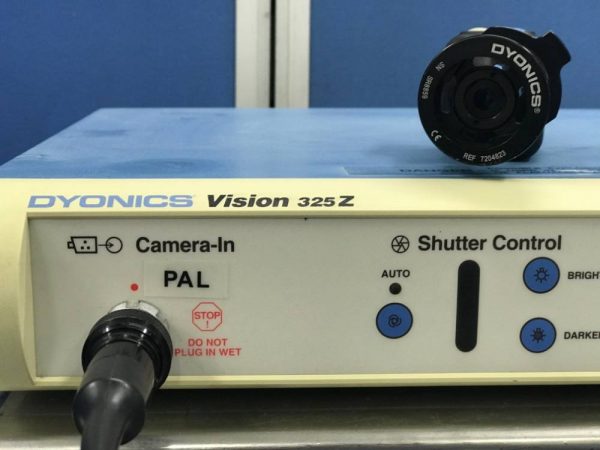

Smith & Nephew Dyonics Vision 325Z DV Digital 3-Chip Camera System.
-Resolution: Horizontal: >800 TV lines (RGB or R-Y/B-Y/Y) Vertical: 450 lines
-Signal-to-Noise: Greater than 60 db
-Shutter: NTSC: 1/60 per second through 1/10,000 per second shutter speed
PAL: 1/50 per second through 1/10,000 per second shutter speed
-NTSC/PAL Video Outputs: Two video outputs 1 volt P-P, NTSC or PAL into 75 ohms,BNC coaxial connectors
-RGB Video Output: One video output 1 volt P-P, R-G-B and Sync into 75 ohms, BNC coaxial connectors (switchable to R-Y/B-Y/Y)
-Y/C Video Output: Two Y/C video outputs, combined luminance/chroma signal into 4 pin
-Component Video Output: One video output 0.7 volt P-P, R-Y, B-Y and 1 volt P-P for Y into 75 ohms, BNC coaxial connectors (switchable to RGB)
-Standard Illumination: Minimum illumination 1.25 lux at f1.4
-Power Requirements: 100-120/220-230 VAC
